Granny Flats, Tiny Homes & Cottages with or without wheels.
Join them together for extra space. Great for the Kids, Mum, Dad, Rumpus or other, a piece of land, remote or rural living.

Features:

Features and specifications subject to change.

Australian Standards Compliant Power and Lighting:

• Light and power cable, switches and power points installed.
• Power point provided for wall mounted TV.
• Electrical distribution board installed and wired for AC.
• Mains power connection point located to the rear of the cottage.
• LED Light fixtures and fittings supplied.

Bathroom:

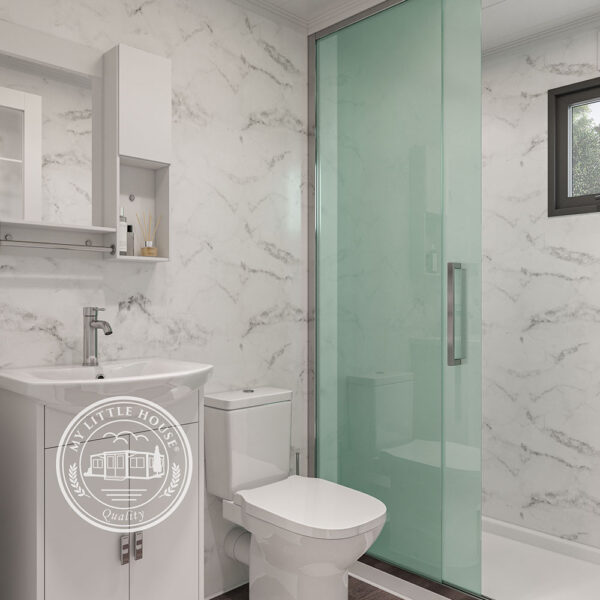

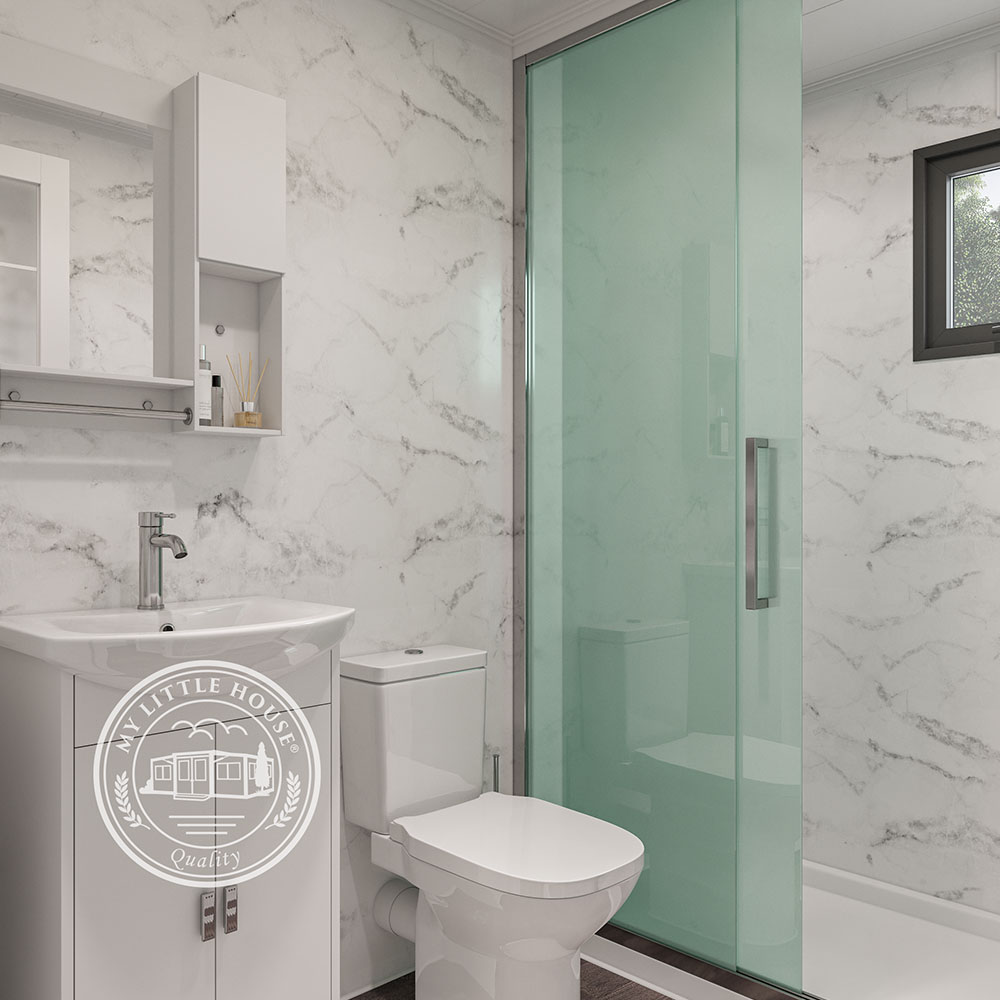

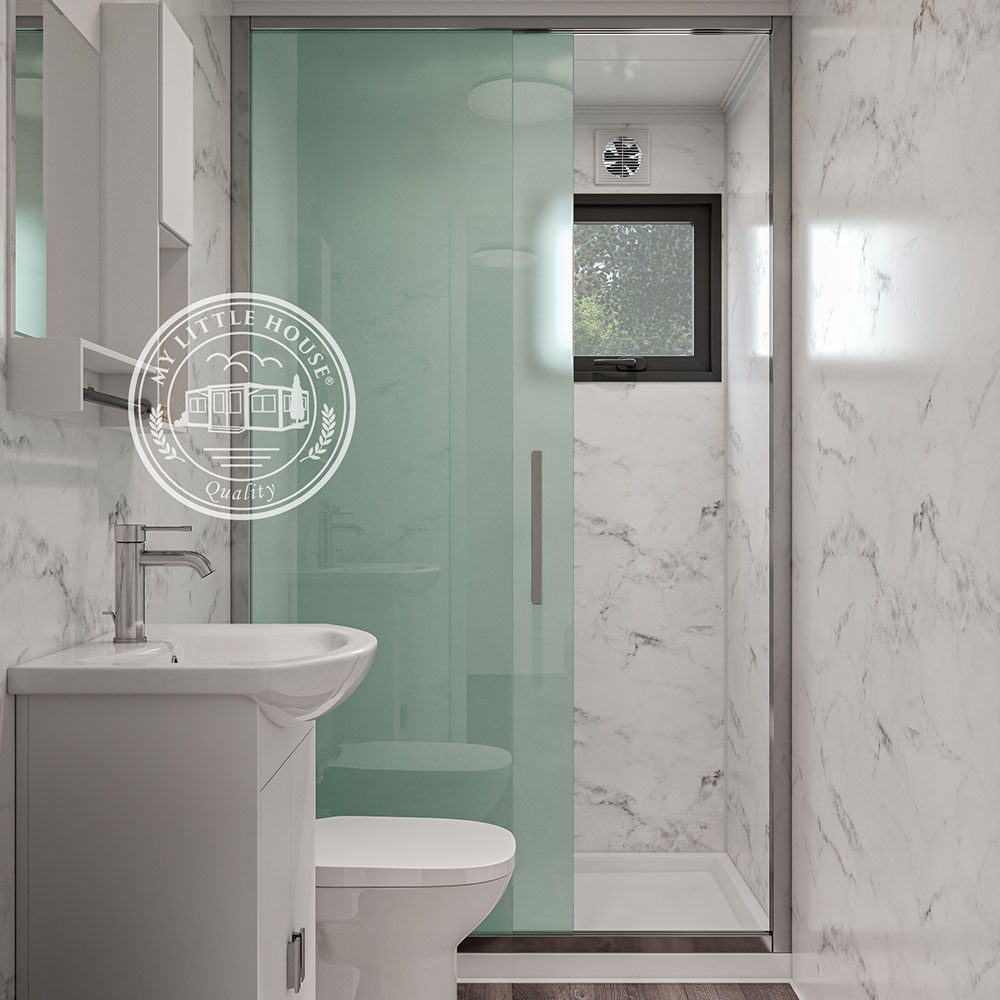

• Full width shower with glass sliding door, rain maker shower head, vanity with sink and flick mixer, overhead cupboard with mirror, toilet with soft close lid and exhaust fan.
• 100% complete and ready for connection via water and waste points conveniently located to the rear of the cottage.

Kitchen:

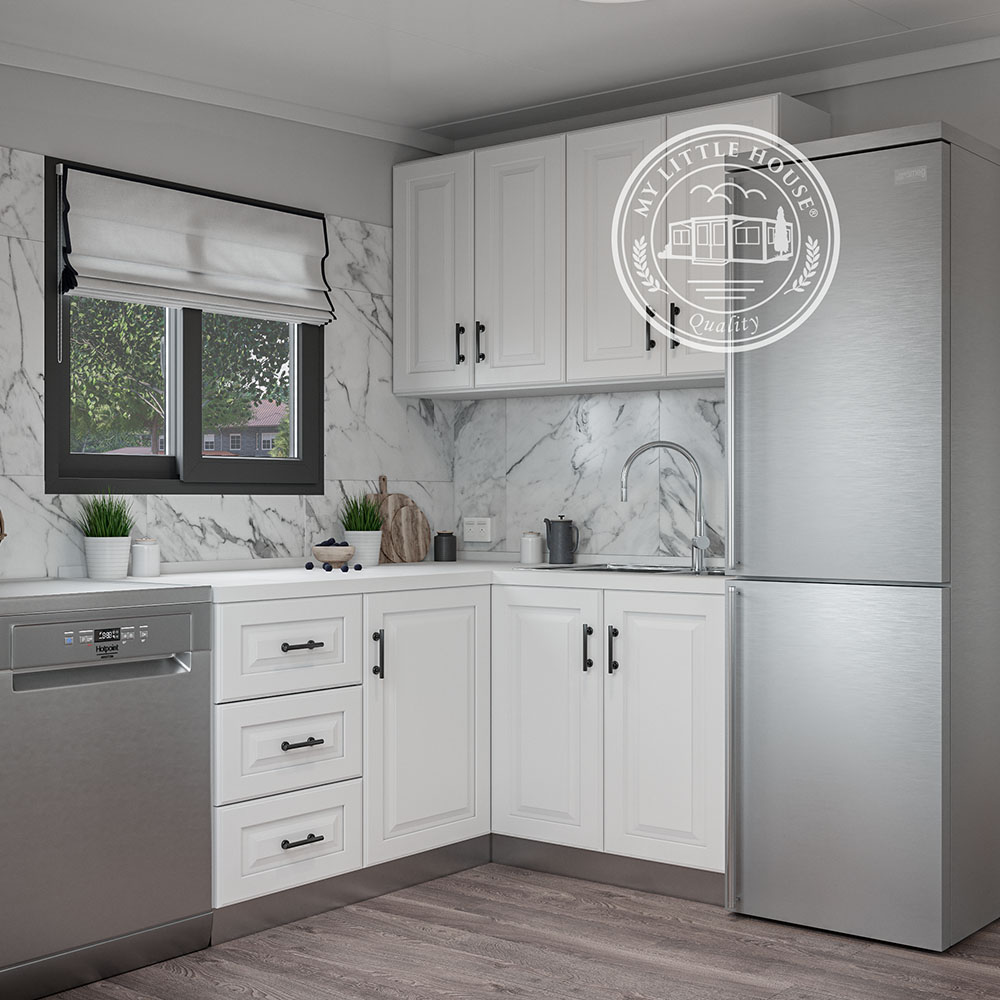

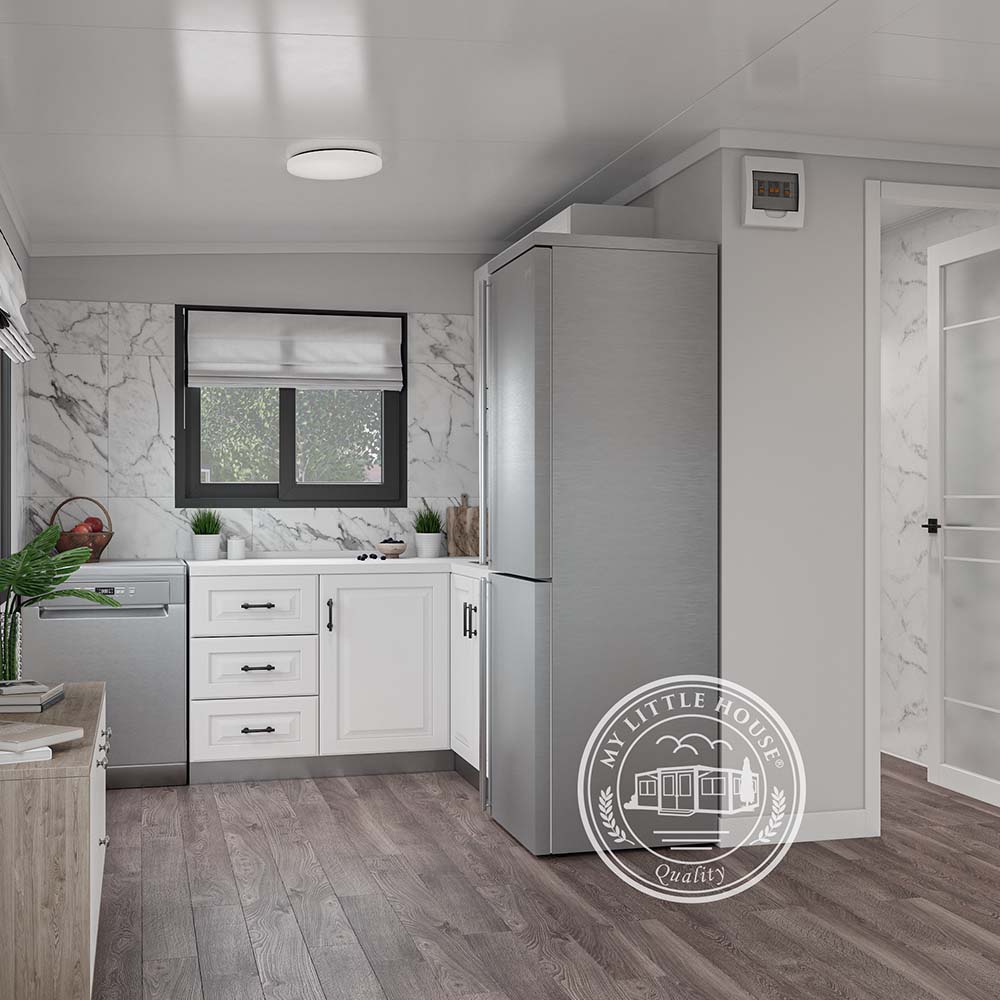

• Supplied with large L-shaped kitchen, stone bench tops, double bowl stainless sink and flick mixer with overhead cupboards and room for a dishwasher/washing machine and fridge.
  Note: Kitchen is NOT supplied flat packed. Kitchen is supplied in a protective wrap, add adjustable feet and install stone benchtop, sink and tap. Water and waste points conveniently located.

Windows and Doors:

• Aluminium double glazed windows with fly screens.

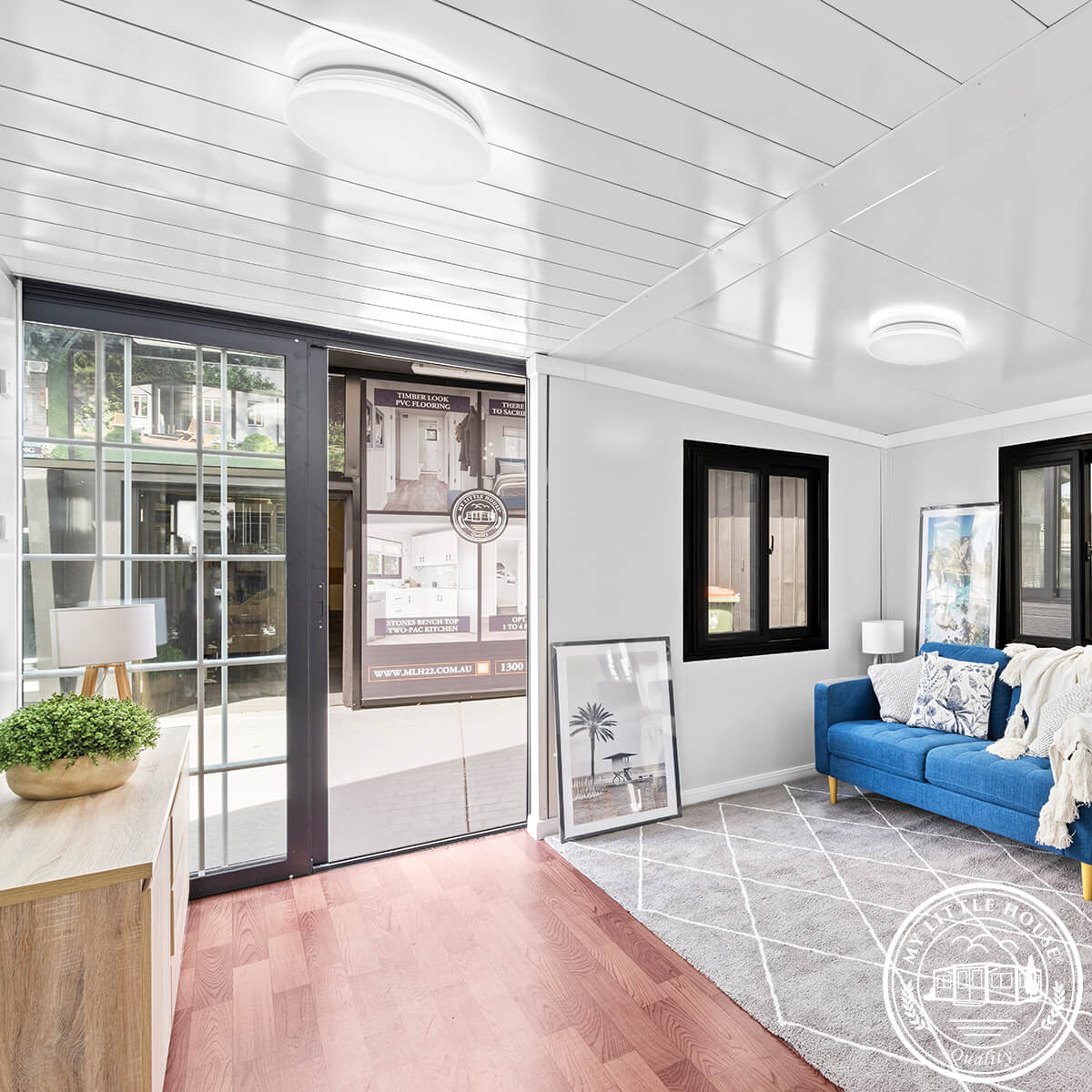

• Sliding glass and aluminium entry doors and privacy glass bathroom door.

Roof:

• Centre section: Glasswool insulation, galvanized & painted steel.
• Side roof: Galvanized frame and paint protected steel with 50mm insulation.

Walls:

• 75mm thick insulation, sheeted on both sides with a protective steel sheet.
• Colour coded internal corner angles.

Floor:

• Subfloor is a magnesium concrete composite, amazing material, light, very strong. Water and insect resistant.
• Flooring cover is a thick timber look PVC vinyl.

Installation by customer, please ask if we have an installer in your area:

• 2 to 3 hours to unfold + 15-18 hours for 2-men to fit off, based on a standard installation.
• Setup times exclude ground preparation or placement.
  Note: Ground must be level prior to building placement.
• Roof lift assisted by two gas rams.
• Two electric winches provided to lower the floor (removes manual handling).
• Adjustable feet provided to level the cottage.
• Detailed instruction manual provided.

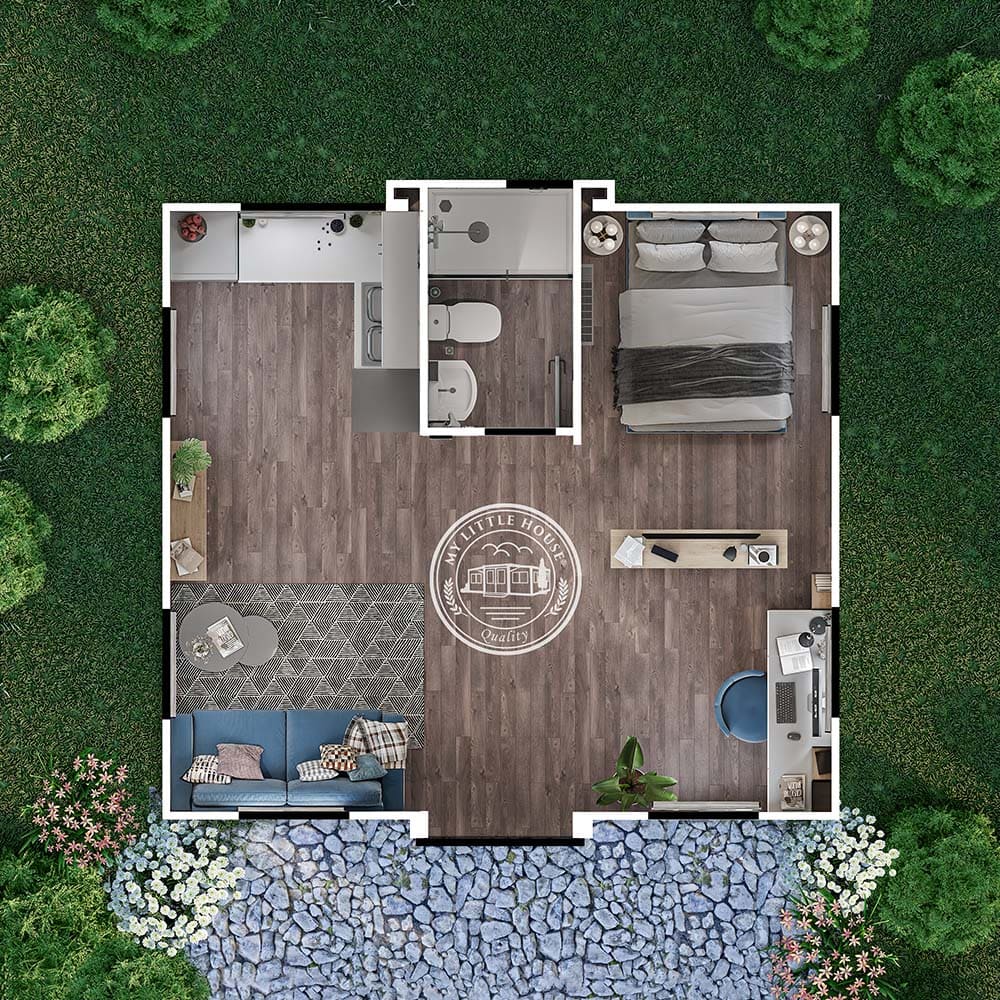

Dimensions (open):

L:5850mm x W:6300mm x H:2530mm – 36.855sqm

Footing options:

There are several options:

• Concrete slab or pads.
• Compacted ground.
• Concrete or Steel stumps.

Note: Finished height of surface must be solid and level to ensure building has good foundations.

Images:

• Items listed are included, such as the bathroom and kitchen, walls & doors

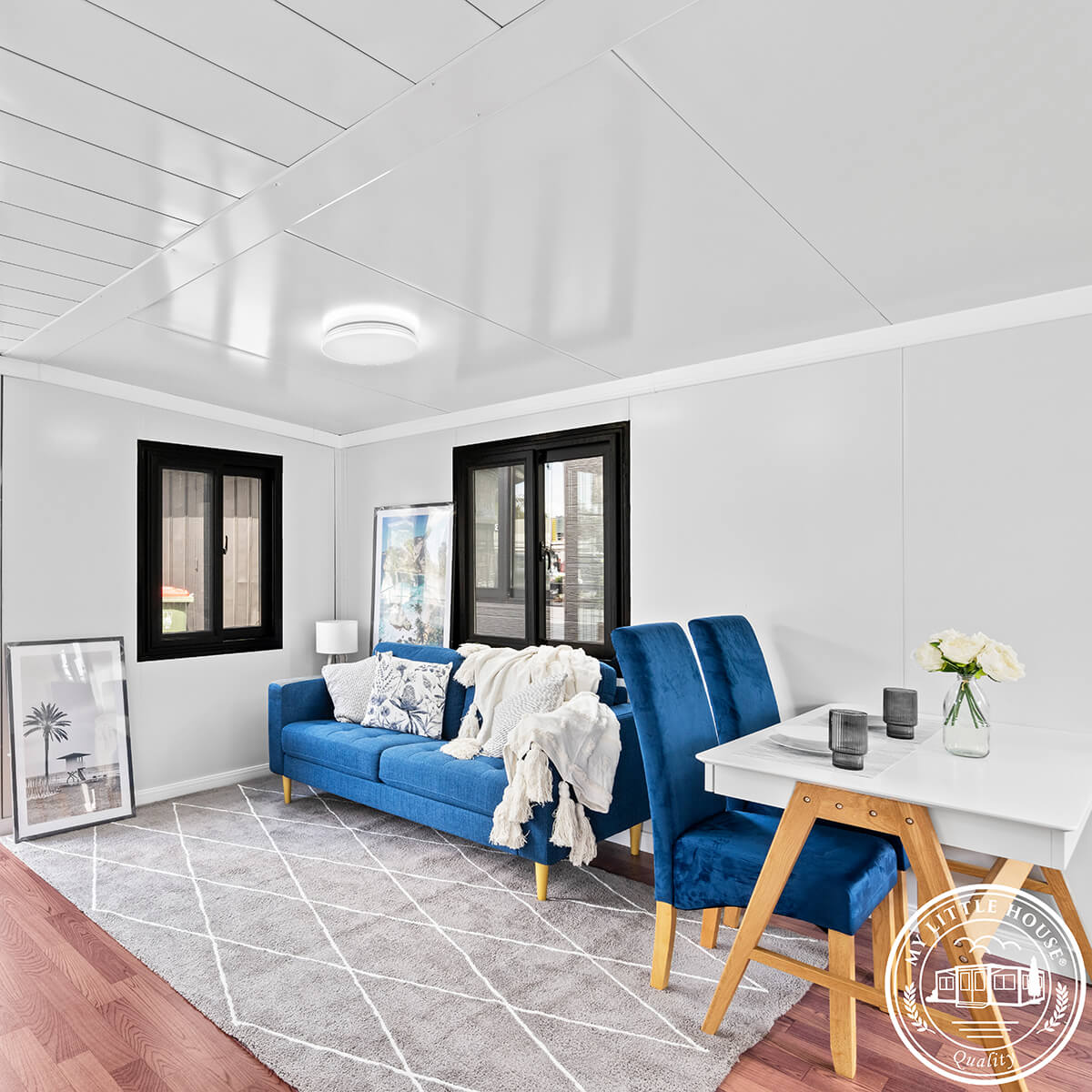

• Granny flats, tiny homes & cottages are not supplied with furniture, fixtures or fittings such as tables, chairs, curtains, pots, plants, rugs, kitchen splashbacks or electrical appliances. Any displayed are not included.
• Some images are artist impressions.
